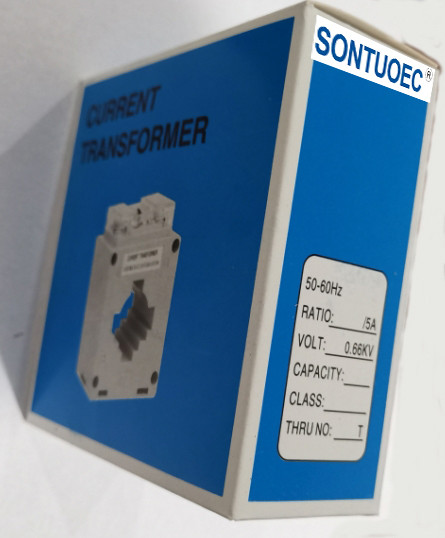

60Hz Msq Current Transformer Sontuoec Low Voltage Current Transformer

Product Categories
WENZHOU SANTUO ELECTRICAL CO.,LTD.
Contact Now

60Hz Msq Current Transformer Sontuoec Low Voltage Current Transformer

Brand Name : SONTUOEC ,SONTUOC,STUOEC, WZSTEC

Model Number : MSQ-30; MSQ-40

Certification : CE

Place of Origin : Wenzhou,China

MOQ : 1000pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 3000pcs/day

Delivery Time : 15days

Packaging Details : Exporting Carton

Items name : MSQ current transformer

Specification : MSQ-30,MSQ-40,MSQ-60,MSQ-100,MSQ-130

Contact Now

SONTUOEC MSQ-30 30/5A,50/5A current transformer low voltage Measuring current transformer

Description

MSQ Current Transformers are suitable to be applied to test, control, display and record the running of the electrical equipment, in the AC circuit with the rated voltage value below 0.72KV and the frequency of 50-60Hz, mainly used in combination with measure meters like ammeter, watt-hour meter, control relayu etc.

MSQ current transformer :

1. Model:MSQ-30,MSQ-30s,MSQ-40,MSQ-60,MSQ-100,MSQ-130

2. Standard:IEC60044-1

3. Certificate:ISO9001:2000, ISO14001:1996,CE

Specifications

1. Rated current:5/5A-
2. Secondary current :5A.1A

3. Rated voltage:0.72kV
4. Rated frequency:50/60Hz
5. Class of accuracy:0.5~1.0
6. Rated security coefficient :FS<5
7. Ambient Temperature Range:-20 to +80

Type Current ratio(A) Rated power(VA) Rated
Class:0.5 Class:1 Frequency(Hz)
MSQ-30 30/5 5 5 50/60
40/5 5 5 50/60
50/5 5 5 50/60
60/5 5 5 50/60
75/5 5 5 50/60
80/5 5 5 50/60
100/5 5 5 50/60
150/5 5 5 50/60
200/5 5 5 50/60
250/5 5 7.5 50/60
300/5 10 10 50/60

60Hz Msq Current Transformer Sontuoec Low Voltage Current Transformer60Hz Msq Current Transformer Sontuoec Low Voltage Current Transformer

60Hz Msq Current Transformer Sontuoec Low Voltage Current Transformer60Hz Msq Current Transformer Sontuoec Low Voltage Current Transformer
